APPLICATIONS Ideal for underground parking garages, industrial plants, car washes and agricultural applications.

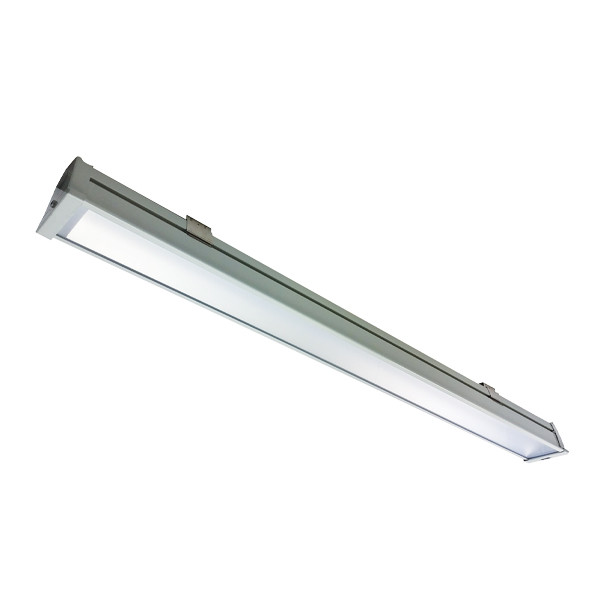

Construction Housing is made of galvanized sheet metal with aluminum end caps. The LFW-LED has a specular aluminum reflector and a tempered glass lens as standard. Tempered glass lens has high lumen transmittance and stands up to high temperature environments.

LED information The fixture contains a high efficiency LED Strip that delivers a total lumen output of 5,076 lumens at an efficacy of approx 127 lumens/watt. LEDs have a colour temperature of 4000K as standard.

Mounting Fixture comes with 2 stainless steel mounting brackets that facilitate easy and quick mounting direct on the wall or ceiling. Wall mount bracket, and pendant mount accessory available (order separately).

Electrical Total system wattage of the unit is 40W. The standard unit has a high efficiency driver that operates at 120 - 277V. 347V is available as an option. Fixture can be through-wired leading to reduced installation time. Daisy chain up to 25 units in a single run.

Finish Fixture has a chemical resistant polyester powder coat grey finish

Options • 0 – 10V dimming • Junction box assembly (Sold separately)
